Log Masking

Log masking helps prevent sensitive information from being exposed in access logs by masking selected log fields values before they are written. Rules defined in a LogMaskingPolicy custom resource specify which log fields to mask, helping prevent credentials, tokens, passwords, and API keys from being logged. Masked values are rendered as ****.

Log masking can be configured in three ways:

Built-in field categories (recommended)
- Mask entire groups of request data (e.g., credentials or tokens).
Header rules
- Mask values of custom request headers matching your rules.
Parameter rules
- Mask values of custom request parameters matching your rules.

Prerequisites

A Gateway Deployment.
An HTTPRoute routes traffic to your application.

Configuration

This section shows how to configure Airlock Microgateway to mask sensitive data in the logs.

Create a LogMaskingPolicy resource

Create a LogMaskingPolicy that targets your HTTPRoute, enables a built-in masking category, and define custom header and parameter masking rules.

Example

apiVersion: microgateway.airlock.com/v1alpha1
kind: LogMaskingPolicy
metadata:
  name: log-masking-policy-example
  namespace: project-a
spec:
  targetRefs:
    - group: gateway.networking.k8s.io
      kind: HTTPRoute
      name: <your-webapplication>
  request:
    fieldCategories:
      - Credentials
    headers:
      - name:
          matcher:
            regex: ^X-<your-token>-[A-Z0-9]+$
    parameters:
      - name:
          matcher:
            exact: socialInsuranceNumber
      - name:
          matcher:
            exact: ssn

About LogMaskingPolicy configurations:

Under spec.request, you define the log masking rules:
Built-in masking rules are configured in fieldCategories.
Custom masking rules for request headers are configured in headers.
Custom masking rules for request parameters are configured in parameters.

Built-in masking categories

The built-in masking categories are applied as follows:
If no LogMaskingPolicy is defined, the built-in masking categories are applied by default.
If spec.request.fieldCategories is not specified in a LogMaskingPolicy, the built-in masking categories are also applied by default.
To disable the built-in masking categories, configure fieldCategories: [].

Custom masking rules

Additional headers and parameters can be masked with spec.request.headers and spec.request.parameters.
Use name.matcher to match a header or parameter name.
Use value.matcher to match a header or parameter value.
If both a name matcher and a value matcher are configured, the value is masked only if both conditions are fulfilled.

Notice

Header name matching is case-insensitive. Parameter name matching, by default, is case-sensitive.

Validation

Validate masking in the access logs

Trigger a request that would normally include sensitive values (e.g., Authorization: Bearer ... or a password parameter) and inspect the access log entry. If masking is active, the sensitive values are shown as ****.

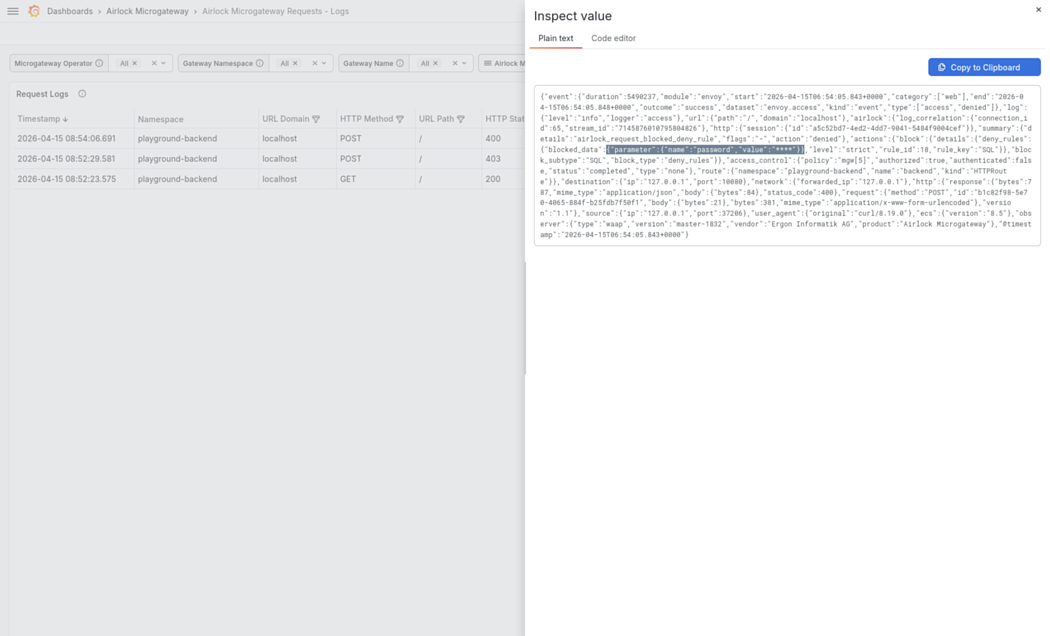

Validate in Grafana

Use the built-in Grafana dashboard Airlock Microgateway Threats Block - Logs and inspect the Details field for blocked requests. Confirm that the configured header or parameter values are masked.

Limitations

Masking is applied only to parameter and header values blocked by the following filters:
- Deny rules, including both built-in and custom rules
- Limits
- Encoder, for example due to invalid encoding
Values for query parameters are not masked.
Sensitive data can still be visible in the application log at log level debug and trace.

CR reference documentation

LogMaskingPolicy
