Post-quantum cryptography

TLS integration

With the advent of quantum computers capable of breaking classical public-key cryptographic schemes, widely used algorithms (including RSA and elliptic-curve cryptography) will become insecure. This already poses a serious risk to long-term confidentiality. In harvest-now-decrypt-later attacks, encrypted traffic is recorded today and stored so it can be decrypted later when sufficiently capable quantum computers become available.

Post-quantum cryptography (PQC) mitigates this threat by introducing algorithms designed to withstand both classical and quantum attacks. Airlock Microgateway integrates PQC in the TLS handshake using hybrid key exchange groups (classical and PQC combined). This maintains compatibility because clients that do not support PQC can negotiate traditional groups (e.g, X25519). Some performance overhead may be observed due to the additional computational cost of post-quantum algorithms.

In Airlock Microgateway, PQC is enabled by default for downstream TLS connections and can be disabled. For upstream TLS connections, PQC is disabled by default and can be enabled. This article applies when Microgateway is intended to terminate client-facing TLS traffic or when Microgateway initiates upstream TLS connections to backend services.

PQC in hybrid key exchange groups

PQC algorithms are not used as standalone cipher suites. They are part of TLS key exchange groups (also known as ECDHE groups). In hybrid mode, the post-quantum algorithm is combined with a classical key exchange. The only hybrid group used in Airlock Microgateway is X25519MLKEM768, which combines classical X25519 key exchange with the post-quantum MLKEM768 algorithm.

In this article, TLS supported groups refers to the key exchange groups negotiated during the TLS handshake; the configuration key microgateway.airlock.com/ecdhCurves defines the allowed TLS supported groups in order of preference.


Notice

PQC-based authentication is currently not applicable to public key certificates because relevant standards for post-quantum public key infrastructure are still in development. Therefore, post-quantum public key certificates are neither standardized nor supported by browsers, yet. This makes broad deployment of such certificates currently impossible.

  • From an IT security perspective, however, this delay is not considered problematic: an attacker would already need access to a highly capable quantum computer today to successfully forge or break authentication mechanisms — a scenario that is currently regarded as highly unlikely. Unlike the confidentiality risks associated with harvest-now-decrypt-later attacks, the risk to authentication remains negligible at the current stage.

Prerequisites

  • Post-quantum cryptography requires TLS 1.3. Ensure that TLS 1.3 is enabled in Airlock Microgateway and that it is supported by the connecting client (downstream) and the backend service (upstream).
  •
    Notice
    • Downstream connections have TLS 1.3 enabled by default.
    • Upstream connections have TLS 1.3 disabled by default and must be enabled explicitly.

Configuration

PQC for downstream

This section applies when Airlock Microgateway terminates the downstream TLS connection. PQC is enabled by default for downstream TLS connections and is negotiated automatically when the client supports it. If required, you can disable PQC for a listener by excluding the PQC-enabled key exchange group from the TLS supported group list.

Disable PQC for downstream TLS connections

There is no separate option to toggle PQC algorithms independently. Therefore, the only option to disable PQC support is to define a custom TLS supported group list excluding the hybrid X25519MLKEM768 TLS group for post-quantum key exchange. This can be achieved by using the microgateway.airlock.com/ecdhCurves setting in the CR Gateway.

Edit the CR Gateway and configure the TLS supported groups (ecdhCurves).


Example
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: gateway-example
  namespace: example-backend-gw
spec:
  gatewayClassName: airlock-microgateway
  listeners:
    - name: https
      hostname: "*.example.com"
      port: 443
      protocol: HTTPS
      tls:
        mode: Terminate
        options:
          microgateway.airlock.com/ecdhCurves: X25519,P-256

Notice

This setting explicitly defines the TLS supported groups. By omitting X25519MLKEM768, only conventional cryptography is enabled, and PQC is effectively disabled.

  • Depending on the TLS supported groups specified, you may switch additional algorithms on or off.
  • Ensure that the selected TLS supported group list meets your security requirements and is compatible with the TLS supported groups defined in Envoy TLS protocol settings.

PQC for upstream

This section applies when Airlock Microgateway initiates the upstream TLS connection. PQC is disabled by default for upstream TLS connections. If required, you can enable PQC for upstream connections.

Enable PQC for upstream TLS connections

There is no separate option to toggle PQC algorithms independently. Therefore, the only option to enable PQC support is to define a custom TLS supported group list including the hybrid X25519MLKEM768 TLS group for post-quantum key exchange. This can be achieved by using the microgateway.airlock.com/ecdhCurves setting in the CR BackendTLSPolicy.

Edit the CR BackendTLSPolicy, configure the TLS supported groups (ecdhCurves) and set the maximumVersion to TLSv1_3.


Example
apiVersion: gateway.networking.k8s.io/v1
kind: BackendTLSPolicy
metadata:
  name: example-backend
  namespace: example-backend-app
spec:
  targetRefs:
    - kind: Service
      group: core
      name: example-backend
      sectionName: https
  validation:
    wellKnownCACertificates: "System"
    hostname: backend
  options:
    microgateway.airlock.com/minimumVersion: TLSv1_2
    microgateway.airlock.com/maximumVersion: TLSv1_3
    microgateway.airlock.com/ecdhCurves: X25519MLKEM768,X25519,P-256

Validation

Validate PQC usage in Grafana

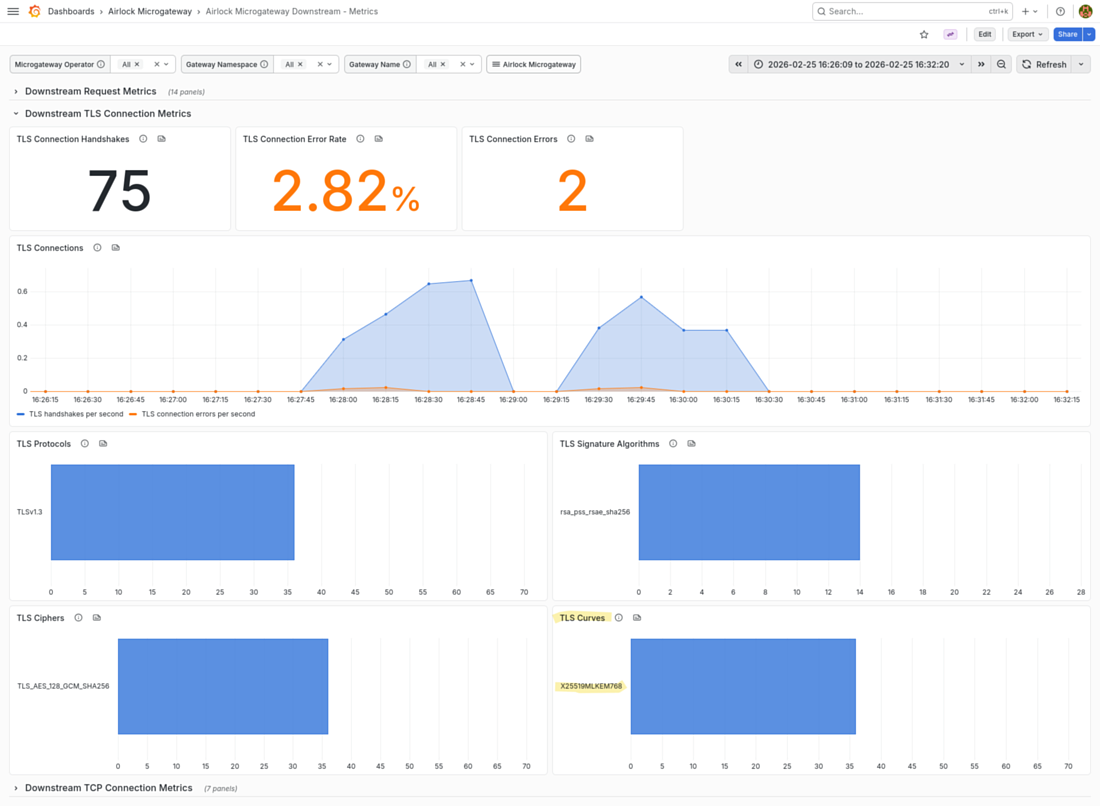

The built-in Grafana dashboard Airlock Microgateway Downstream - Metrics shows the TLS supported groups used in successful TLS connections.

Validate PQC usage in a browser

With PQC enabled, the following will be observed in the browser's developer console when accessing a web application or API protected by Airlock Microgateway.

Google Chrome

  1. Open the website you intent to inspect.
  2. Press F12 or right-click and choose Inspect to open the Developer Tools.
  3. Go to the Security tab.
  4. Under Connection, check in the Key Exchange or Key Agreement field if PQC is used (i.e. X25519MLKEM768)
  5. The hybrid PQC group may be listed as follows:
  6.
    Example
    X25519MLKEM768

Mozilla Firefox

  1. Open the website you intent to inspect.
  2. Press F12 or right-click and choose Inspect to open the Developer Tools.
  3. Go to the Network tab.
  4. Reload the page and click the main document request (usually the first one).
  5. In the Security subtab (on the right), look for Key Exchange Group or Key Exchange.
  6. The hybrid PQC group may be listed as follows:
  7.
    Example
    mlkem768x25519

Notice

Naming may vary (e.g., X25519MLKEM768Draft00, X25519+MLKEM768, or similar), depending on the browser version.

Limitations

The following limitations apply to the current PQC implementation:

  • Upstream connections do not use TLS 1.3 by default. As a result, PQC is disabled by default for upstream connections.
  • TLS supported group metrics are available only for downstream TLS connections.
  • Access logs do not indicate which TLS supported groups were negotiated or used.
