Section – Management Access

Here, the management interface can be set. The management interface is used for administrative access to the Airlock Gateway (Configuration Center and SSH) and also for direct communication between Airlock Gateway cluster nodes (see Section – Failover Configuration).

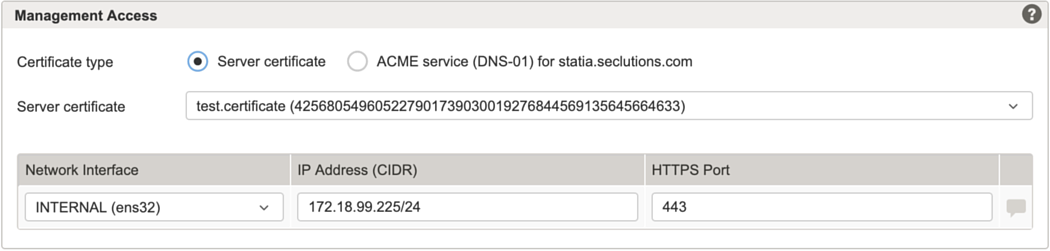

Example with Server certificate enabled:

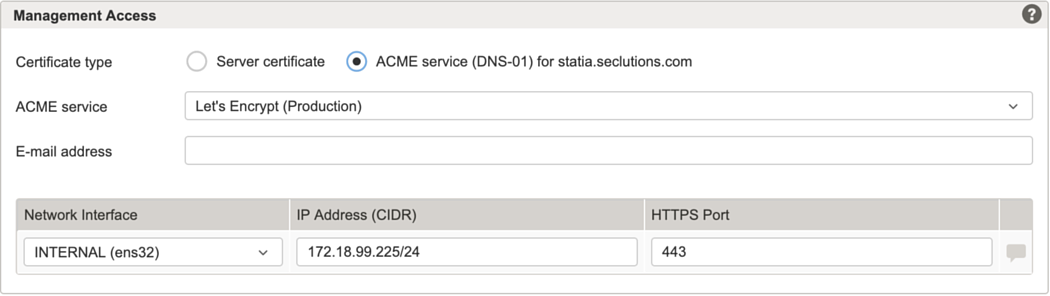

Example with ACME service enabled:

Setting	Description
Certificate type	Server certificate, the SSL/TLS certificate for this virtual host. When this radio button is selected, the Server certificate field provides a drop-down list for choosing a certificate.
Certificate type	ACME service as configured in Tab – ACME Services (virtual hosts). Risk If the TLS certificate presented by the configured ACME service endpoint is issued by a CA that is not trusted by the Gateway instance, Airlock Gateway cannot establish the TLS connection to the ACME service. This can prevent certificate issuance or renewal for the management interface and may render the Configuration Center inaccessible over HTTPS. To regain administrative access, use one of the following options: In the Airlock Gateway admin menu, access the Expert Settings area and choose the option to reconfigure the internal network interface (re-ip). Re-establish trust (e.g., by installing the issuing CA certificate). See ACME Service configuration for details. Notice The name of the virtual host used for ACME is displayed next to the radio-button. It is derived automatically from the node name according to the following rules: If the node name is a fully qualified domain name (FQDN), that FQDN is used. If the node name is only a hostname and a default DNS domain is configured, the FQDN is constructed from the hostname and the default DNS domain. If the derived Virtual Host does not match the intended FQDN, set the node name explicitly to the desired FQDN. ACME service — a drop-down menu for service selection. E-mail address — the server administrator’s email address. It is used as the contact address for the ACME service. You can set the address separately for each virtual host. Comment on the selected ACME service (only refreshed on validation). Notice By using an ACME service, you automatically agree to the terms and conditions of use for the service. For the Let's Encrypt subscriber agreement, see the Let's Encrypt policy and legal documentation.
Network interface	You can choose either a physical or virtual interface. If no dedicated management network is available, you can use any back-end network interface as the management interface.
IP address (CIDR)	Specifies the IPv4 or IPv6 address assigned to the management interface for administrative access. If no dedicated management network is available, this can be the same as the back-end IP address.
HTTPS port	Specifies the port on which the Configuration Center listens for HTTPS (TLS) connections.
