How to configure and use configuration contexts


Info

In the following, the example screenshots and texts are based on the following simple example:

  • All clients (browsers) with the client IP in the range 192.168.0.0/24 are in the context INTRANET
  • All other clients use the DEFAULT context.
  • The example only covers the Loginapp.

The following steps are required to make use of configuration contexts:

  1. Configure context extraction.
  2. Define contexts and the context retention policy.
  3. Define context-specific values.

Step 1: Configure extraction

A context extractor plugin must be configured so Airlock IAM can determine the configuration context of the current request.

  1. go to
    Loginapp >> Advanced Settings >> Context Extractor
  2. Add a new context extractor plugin and configure it according to your requirements.

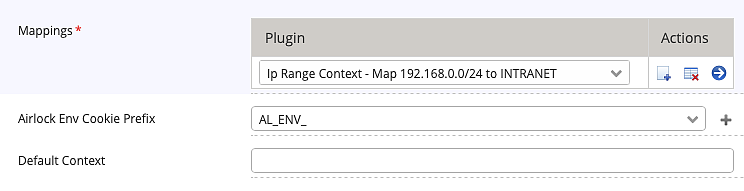

    For our example, add a new IP Context Extractor plugin and configure it accordingly.

Info

Context extraction is defined similarly in the Transaction Approval and the API Policy Service modules.

Step 2: Define contexts

Configuration contexts have to be explicitly defined in the Config Editor. The default context always exists and does not have to be added. It is visible as the [DEFAULT] tab just above the properties of each plugin.

To add a new context (e.g. INTRANET), click on the + next to the context tabs and enter the name of the context. Then click the Create button.

The new context INTRANET is now visible as a tab in all plugins used in a module supporting contexts (Loginapp, Transaction Approval, API Policy Service).

Step 3: Define context-specific values

To define a context-dependent value for any property in the configuration:

  • Select the corresponding context tab above the properties list (INTRANET in our example).
  • Click on the overwrite icon (pencil) to overwrite the value inherited from the default context.
  • Edit the desired value (in the example below, the Max Failed Factor Attempts value is set to 10 for the context INTRANET)

Notice
  • Remember, that configuration contexts are only used in the Loginapp, the Transaction Approval, and the API Policy Service modules. Defining context-dependent values for other modules (Adminapp, Service container) has no effect.
  • Do not forget to activate the configuration changes
  • You can use the plugin Static Context Extractor to test whether the configured context-dependent values are as desired.
